Metal Detector
VANQUISH 360
FEATURES


Proven Performance


Intuitive Interface


Compact and Ready

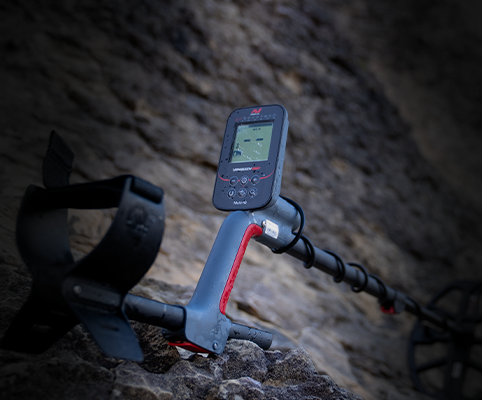

Rugged Build
OVERVIEW


SIMPLE YET POWERFUL

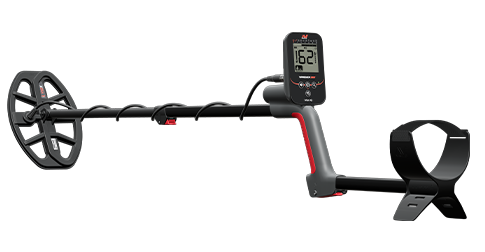

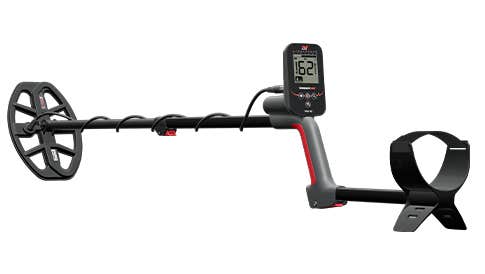

VANQUISH 360
VANQUISH 360 delivers streamlined detecting with professional-level performance in a lightweight, compact form. Built with Minelab's proven Multi-IQ® technology, it scans multiple frequencies at once to boost ground coverage and help identify more targets. Choose from Park, Beach and All Metal modes to cover more ground with the included V10X coil. VANQUISH 360 is IP68-rated and fully waterproof up to 5 m (16 ft), with 119 Target IDs and six discrimination segments, to help separate treasure from junk.

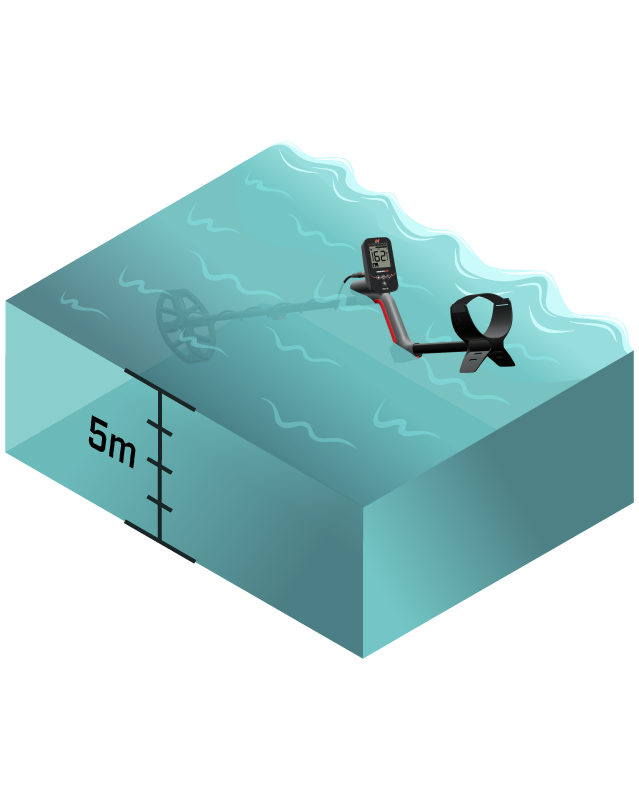

Fully Waterproof
With an IP68 rating, this detector is built to handle water, dirt and dust with no compromise to performance. Fully submersible up to 5 m (16 ft), it’s engineered for versatility across submerged environments, wet terrain and unpredictable weather. Reliable detection continues uninterrupted in creeks, shorelines, rain-soaked ground and other demanding conditions.

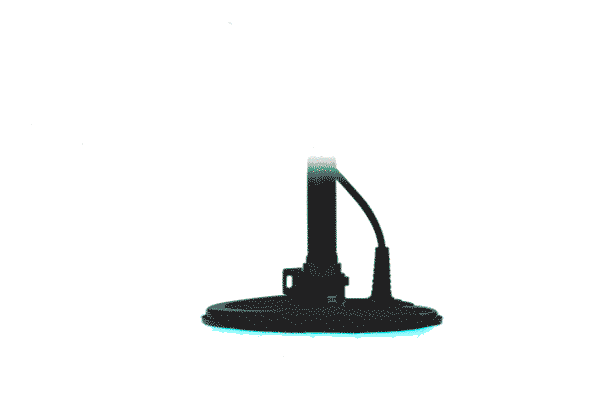

Multi-IQ Technology
Why Multi-IQ? Because more performance shouldn’t mean more effort. Minelab’s proven simultaneous multiple frequency technology gives you the power of multiple detectors working for you at the same time. With Multi-IQ there's no switching frequencies, no second-guessing. Just turn it on and start finding. Coins, gold, jewellery. Parks, fields, beaches. No terrain's off-limits. No treasure left behind. All metals. All soils. All the time.
Search Modes
With Park, Beach and All Metal seach modes, you can adapt to changing environments and detect with ease across a range of ground conditions.

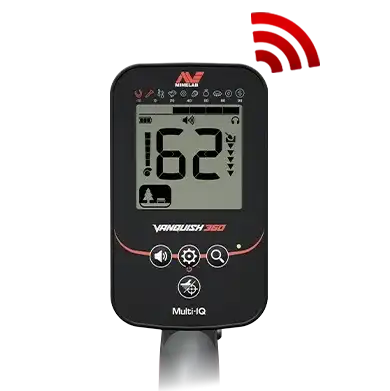

Volume and Target Tones
Five volume levels and three distinct Target Tones (Low, Mid and High) make it easier to distinguish between different targets. Adjust the volume to match your environment, while target tones provide clear audio cues that help you quickly identify the signals worth digging. Enhance awareness in the field and improve target recognition.

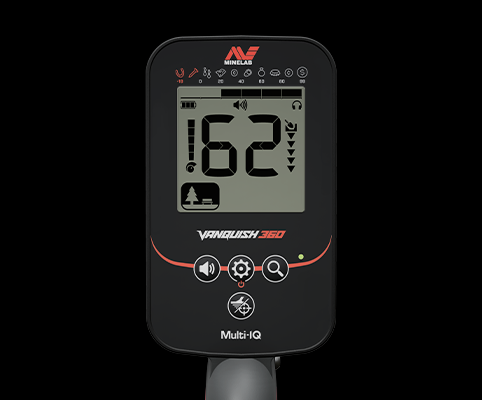

1 Battery Level
2 Sensitivity Level
3 Search Modes
4 Volume
5 Settings
6 Discrimination Scale & Target Guide
7 Depth Gauge
8 Target Identification Number
9 Settings
10 Charge Status
11 Pinpoint

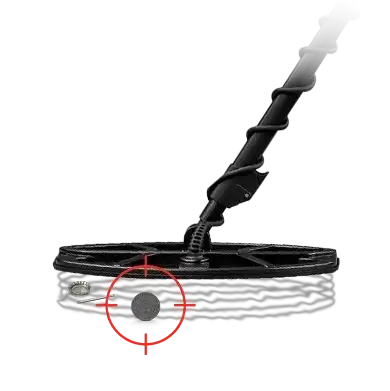

Sensitivity and Discrimination
Five Sensitivity levels and six Discrimination Segments give you full control over how the detector responds to ground conditions and targets. Adjust sensitivity to uncover faint signals or manage challenging soils, while discrimination helps you focus on the metals you want and ignore the rest. Together, these settings provide the precision and flexibility to make every hunt more effective.




1 Built-in Speaker
2 Magnetic USB Charging Connector
3 Headphone Socket
4 Low Latency Wireless Audio
5 Handgrip

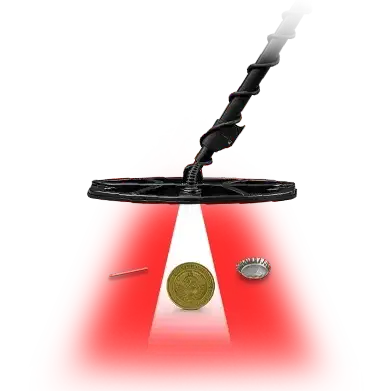

Iron Bias
Fixed Iron Bias reduces signals from ferrous trash, helping isolate valuable targets and maintain consistent performance in junk-filled areas.


Included Coil
Highly versatile and waterproof V10X 10" x 7" Double-D coil.


Rechargeable Battery
A built-in lithium-ion rechargeable battery delivers dependable performance, with up to 10 hours of continuous run time.


Pinpoint Mode
Included Pinpoint Mode to help you zero-in on targets and dig smaller holes with extreme precision.


3-Year Warranty
Built to last and protected by a 3-year warranty.
ACCESSORIES INCLUDED

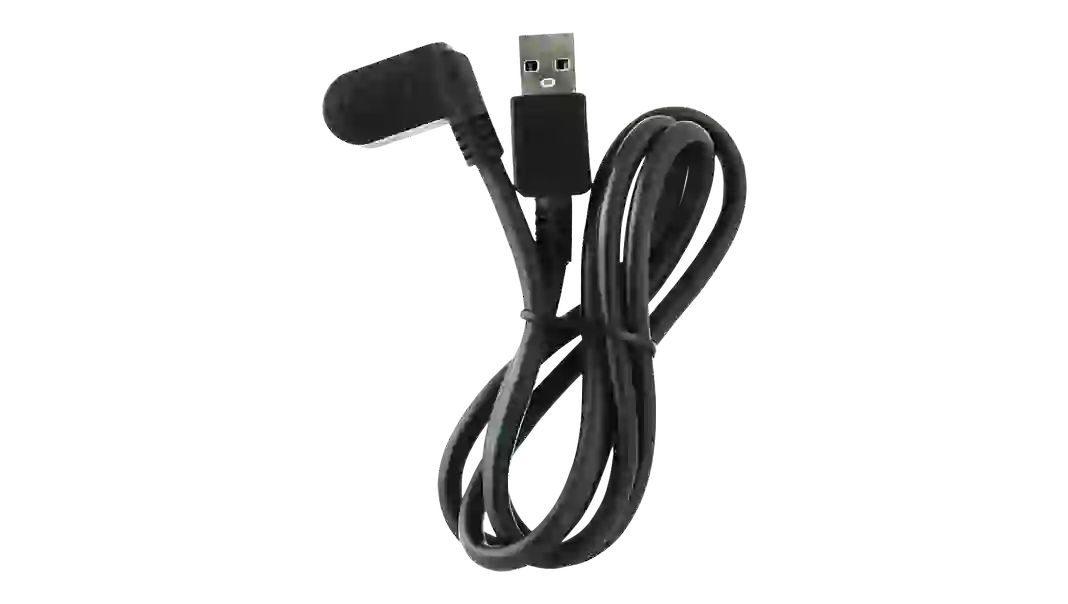

Magnetic USB Charge Cable

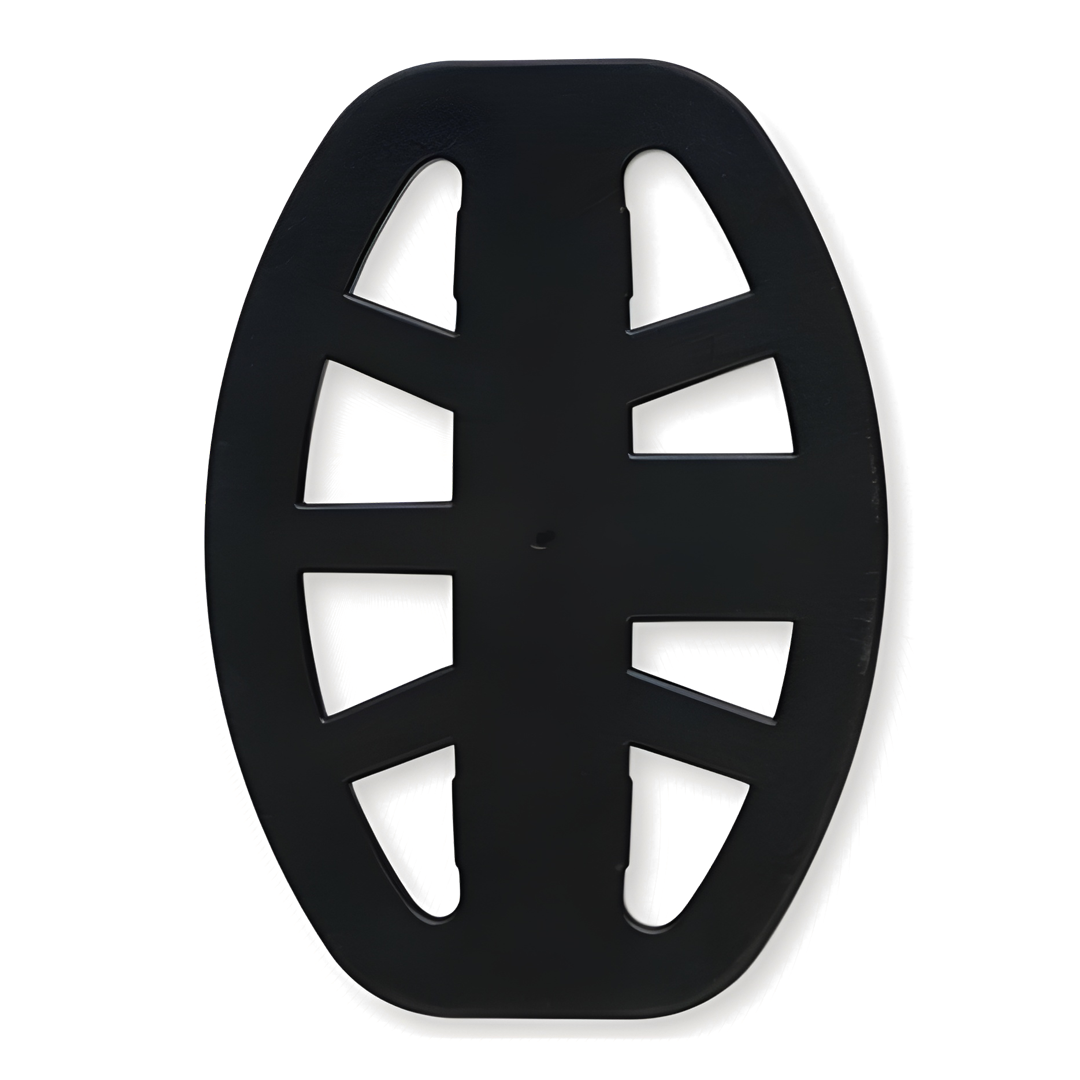

V10 Skid plate
TECHNICAL SPECIFICATIONS
SEARCH MODES
Park, Beach and All Metal
OPERATION FREQUENCY
Multi-IQ®
SENSITIVITY
5 Levels
NOISE CANCEL
Auto
WIRELESS AUDIO
No
VOLUME CONTROL
5 Levels
FERROUS VOLUME
Fixed
TARGET TONES
3
INCLUDED HEADPHONES
No
AUDIO OUTPUT OPTIONS
Built-in Loudspeaker, Wired 3.5 mm (1/8") Headphones
DISCRIMINATION SEGMENTS
6 Segments
TARGET IDS
Ferrous -19 - 0, Non-Ferrous: 1 - 99
DEPTH INDICATOR
5 Levels
IRON BIAS
High
LENGTH
Extended: 142 cm (56 in), Collapsed: 79 cm (31 in)
WEIGHT
1.16 kg (2.6 lbs)
OPERATING TEMPERATURE RANGE
-10°C - 40°C (+14°F - +104°F)
STORAGE TEMPERATURE RANGE
-20°C - +70°C (-4°F - +158°F)
WATERPROOF
IP68 5m (16 ft)
DISPLAY
Monochrome LCD
DISPLAY BACKLIGHT
No
KEYPAD BACKLIGHT
No
FLASHLIGHT
No
VIBRATION
No
KEY TECHNOLOGIES
Multi-IQ
STANDARD COIL
V10X 10" x 7" Double-D Elliptical
SUPPLIED BATTERIES
Internal Lithium-Ion Rechargeable
SUPPLIED ACCESSORIES
V10X 10" x 7" Double-D Elliptical Coil, USB-C Magnetic Charging Cable and the
