Metal Detector
X-TERRA EXPEDITION
FEATURES


SIMPLE TO USE


CHOICE OF COILS


MULTI-IQ MINELAB DEPTH


RICH AUDIO


FULLY WATERPROOF
OVERVIEW

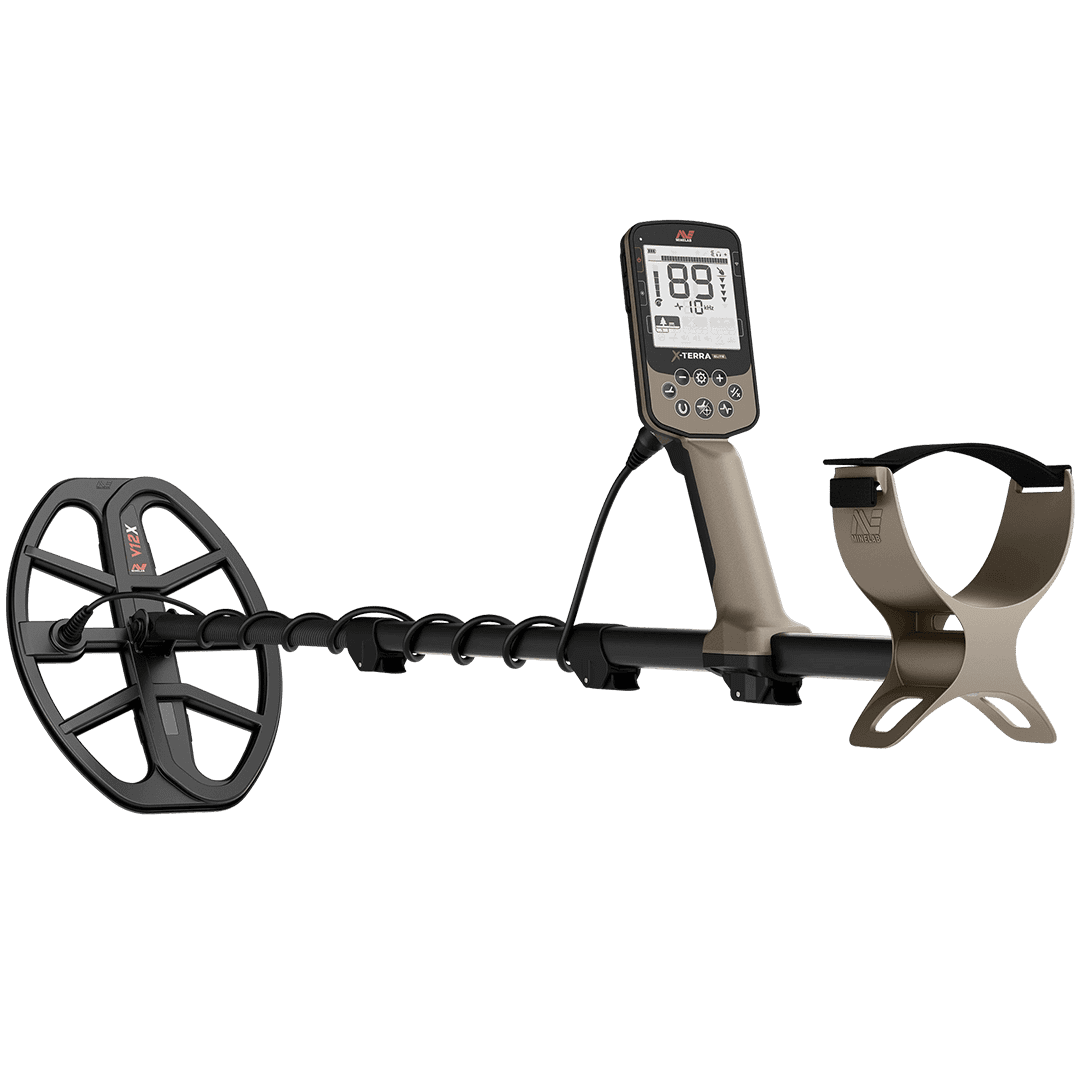

MULTI-IQ, FULLY WATERPROOF, TREASURE DETECTOR


X-TERRA ELITE
Discover the all-new Minelab X-TERRA ELITE EXPEDITION PACK series powered by Multi-IQ — a breakthrough in treasure detection combing cutting-edge technology and affordability. Designed for the savvy hunter in search of a fully waterproof, feature-rich machine with proven Multi-IQ technology, the X-TERRA ELITE EXPEDITION PACK stands unbeatable.


No need to compromise, X-TERRA ELITE EXPEDITION PACK offers superior All-tone Audio, extreme sensitivity and precision, and advanced Iron Control.
The X-TERRA ELITE EXPEDITION PACK Pack includes a V12X Coil with Skidplate, a V8X Coil with Skidplate and ML-85 Wireless headphones.

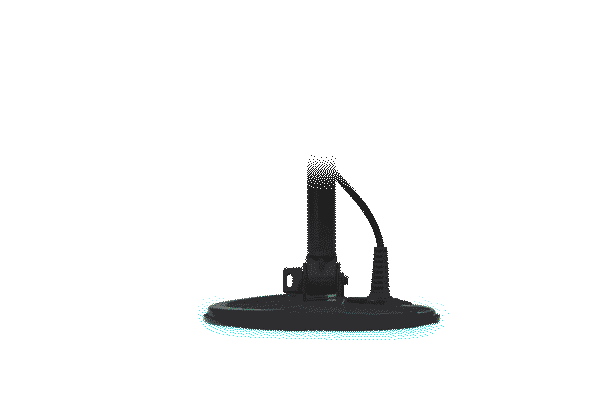

MULTI-IQ
With Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Nothing goes undiscovered and no terrain is off limits. Unearth the power of X-TERRA ELITE powered by Multi-IQ.


SEARCH MODES
Choose between 2 x Park, 2 x Field and 2 x Beach pre-programmed Search Modes. No terrain is off limits.


RICH AUDIO
With multiple tone audio, the sound of treasure is clear. X-TERRA ELITE EXPEDITION PACK’s all-tone audio means you’ll not only ‘hear’ if a target is trash or treasure but you’ll also be able to gauge its size and depth simply by listening.

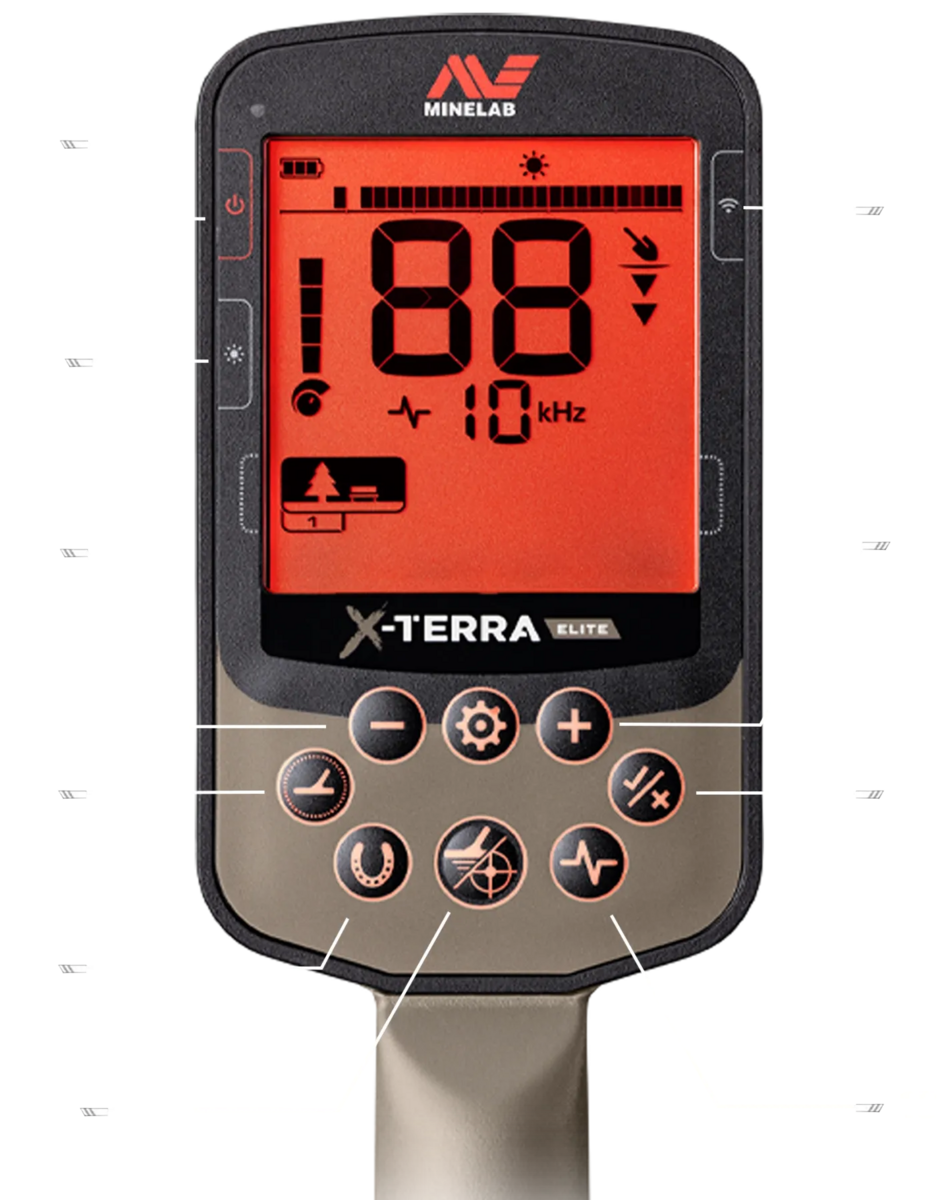

1 Power ON/OFF
2 Backlight & Flashlight Settings
3 Backlit Keys for Night Mode
4 Detect Mode Button
5 All-Metal Shortcut
6 Pinpoint/Detect Button
7 Wireless Audio Control
8 Sensitivity & Setting Control
9 Accept / Reject Button
10 Frequency Select Button


EXTREME PRECISION
The Multi-IQ® engine delivers Stable IDs for even the deepest targets. Recover even the faintest echoes of treasure with 25 levels of sensitivity — when you’ve got a target, switch to Pinpoint to zero-in further.

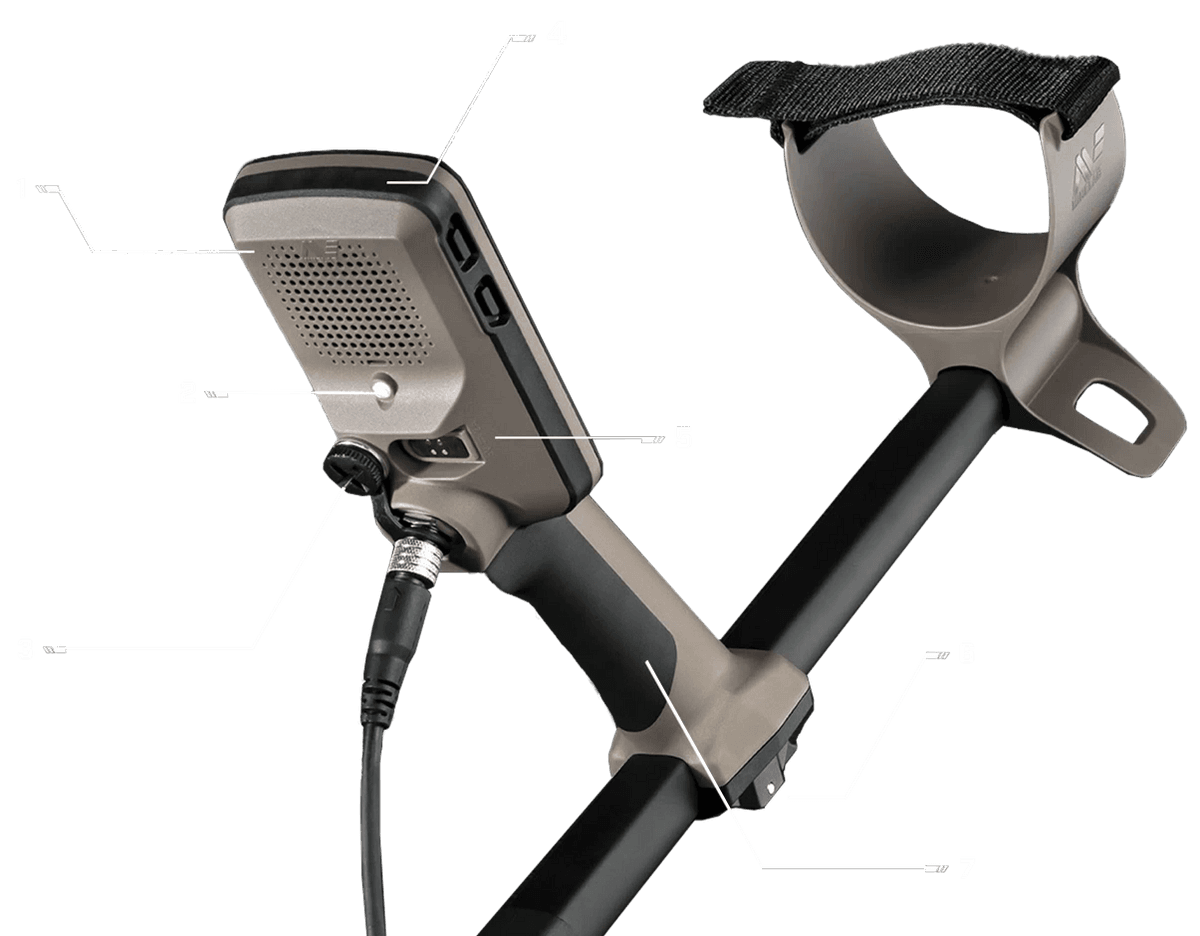

1 Built-in Speaker
2 Flashlight
3 3.5 MM Headphone Socket
with Waterproof Cap
4 Low Latency Wireless Audio
5 Magnetic USB Charging
Connector
6 Adjustable Handgrip
7 Handgrip Vibration

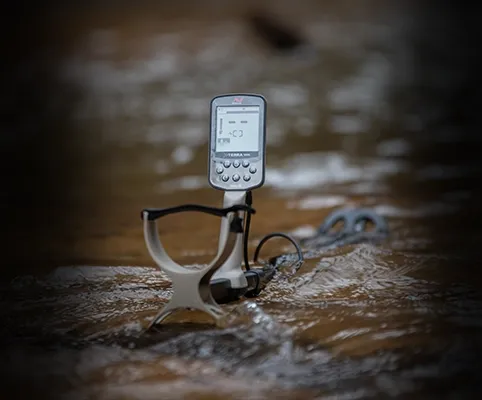

FULLY WATERPROOF
With waterproof control pod and coil to 16 ft, take X-TERRA ELITE anywhere — land or water — and own the ground beneath your feet.


EASY TO USE
A large LCD display and intuitive user interface makes it easy for beginners to get started right out the box, and seasoned hunters to fine-tune settings quickly and easily.


IRON CONTROL
When it’s time to take command of your hunt and sort treasure from junk, X-TERRA ELITE EXPEDITION PACK offers versatile 4-level Iron Bias and nuanced 25-level Iron Volume settings.

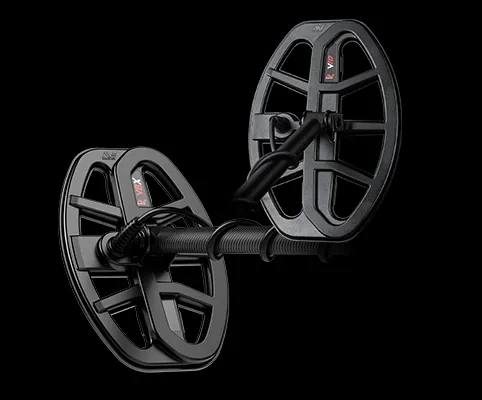

CHOICE OF COILS
X-TERRA ELITE offers an array of waterproof coils and is compatible with V12X™ 12"x9" Elliptical Double-D (included), V8X™ 8"x5" Elliptical Double-D, and V10X™ 10"x7" Elliptical Double-D coils (accessories) so you’ll be prepared for any terrain. X-TERRA ELITE is also compatible with all EQUINOX® series coils.


LIGHTING AND VIBRATION
The daylight may have ended, but that doesn’t mean your hunt has to — with Control Pod Flashlight, Red Backlight Display, Backlit Keypad, and Handgrip Vibration you can power on long after the sun has gone.


LOUD AND CLEAR AUDIO
Enjoy the crystal-clear audio with In-Built Speaker (included) or lightning-fast Low Latency Wireless Headphones, Wired Headphones, and Waterproof Headphones (accessories).


BUILT TO LAST
Because we’re committed to leading the pack for performance and support, X-TERRA ELITE EXPEDITION PACK and by Minelab is backed by Minelab’s global network and up to 3-year warranty.
ACCESSORIES INCLUDED


V12X™ DOUBLE-D COIL


V8X™ DOUBLE-D COIL


ML-85 WIRELESS HEADPHONES
TECHNICAL SPECIFICATIONS
SEARCH MODES
Park, Field, Beach
ALL-METAL SHORTCUT
Yes
CUSTOM SEARCH PROFILES
6
OPERATING FREQUENCIES (kHz)
Park and Field: Multi‑IQ, 15 kHz | Beach: Multi‑IQ

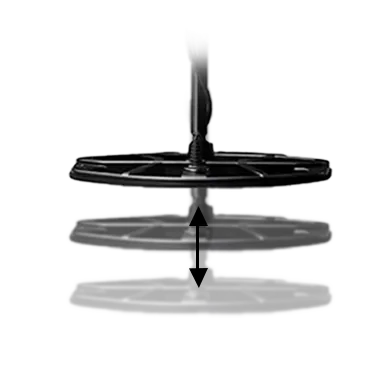

NOISE CANCEL
Auto (19 Channels)
GROUND BALANCE
Auto, Manual, Tracking
SENSITIVITY
1 to 25
TARGET VOLUME
0 to 25
THRESHOLD LEVEL
0 to 25
THRESHOLD PITCH
Fixed

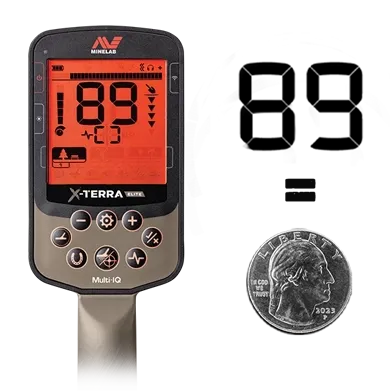

TARGET IDENTIFICATION (TID)
119 segment notch discrimination: Ferrous: −19 to 0 | Non‑ferrous: 1 to 99
TARGET TONES
1, 2, 5, All Tones (AT), Depth (dP)
TONE BREAK
Ferrous (t1)
TONE VOLUME
Tone 1 adjustable: 0 to 25
RECOVERY SPEED
1 to 3
IRON BIAS
-1 to 2
DEPTH INDICATOR
5 levels
DISCRIMINATION SEGMENTS
30 segments (in increments of 4 Target ID's)
PINPOINT MODE
YES
WIRELESS AUDIO
YES
LENGTH (APPROX)
Collapsed: 25 in (630 mm ) Extended: 54 in (1380 mm)
WEIGHT
2.9 lbs (1.3 kg)
DISPLAY
Monochrome LCD
DISPLAY AND KEYPAD BACKLIGHT (RED)
Off, High, Low
FLASHLIGHT
On, Off
VIBRATION (MASTER AND FERROUS)
On, Off
SUPPLIED COIL
V12X 12" Double-D Elliptical coil with skid plate, V8X 8" Double-D Elliptical Coil with skid plate
AUDIO OUTPUT
In-built loudspeaker, Wired 3.5mm (⅛") headphones, Wireless headphones
BATTERY
3.7V/5100mAh Internal Lithium-Ion battery
ADDITIONAL INCLUDED ACCESSORIES
Getting Started Guide, Charging Cable
WATERPROOF
Waterproof to 16 ft / 5 m, IP68
OPERATING TEMPERATURE RANGE
+14ºF to +104ºF (-10ºC to +40ºC)
STORAGE TEMPERATURE RANGE
-20ºC to +70ºC (-4ºF to +158ºF)
KEY TECHNOLOGIES
Multi-IQ®
